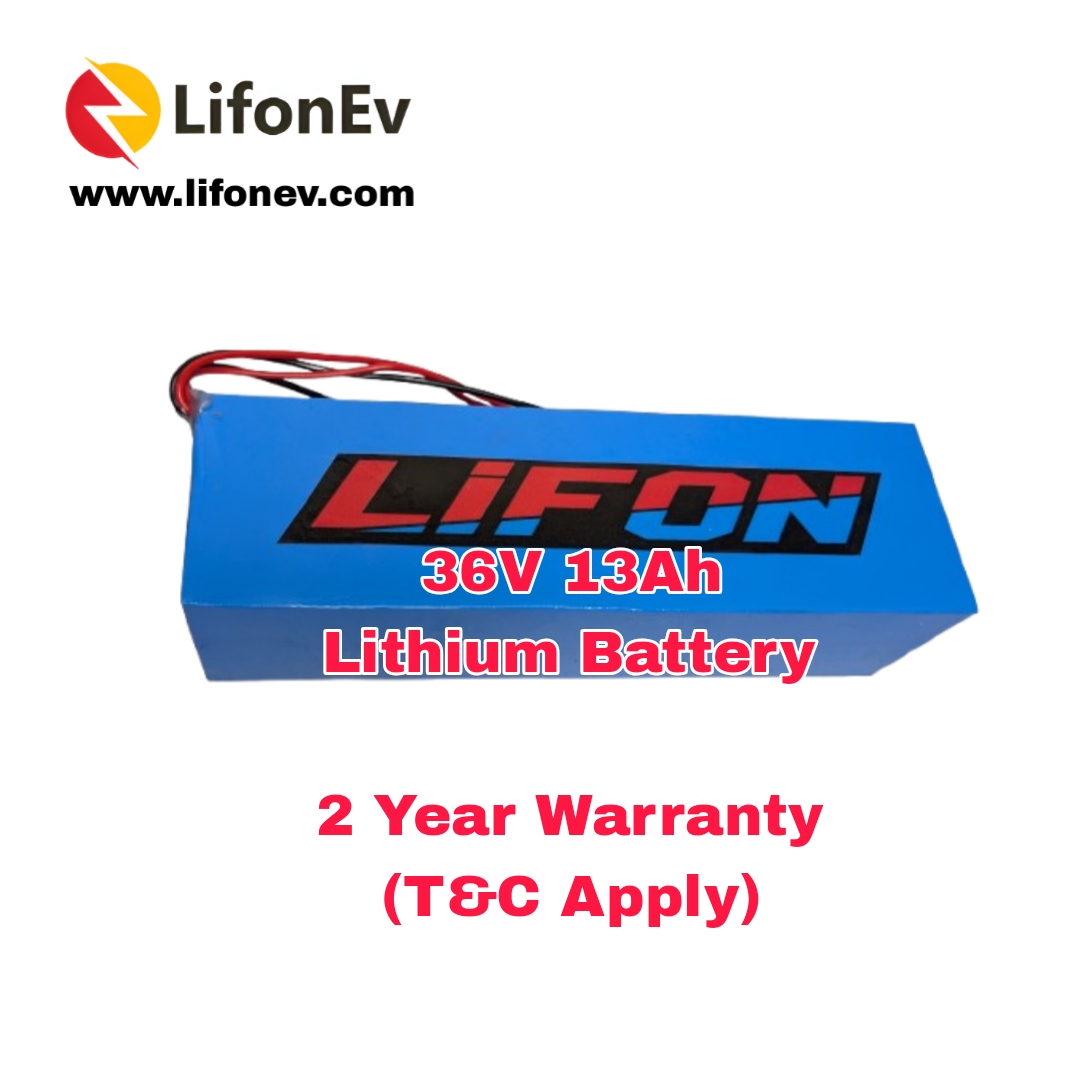

36volt 13AH 45km+ Mileage Electric Cycle Lithium Battery Pack

Description

Premium Lithium-Ion Battery for E-Bikes and E-Cycles

Overview:

This high-performance Lithium-Ion battery is designed to power both Hub Motors and DC Gear Motors, offering excellent reliability and efficiency for your e-bike or e-cycle. With integrated Battery Management System (BMS), it ensures safe operation by providing overcharge protection, discharge protection, and thermal management. The battery’s compact and lightweight design makes it a superior alternative to traditional lead-acid batteries, offering both high power output and extended backup time.

Ideal for 250W and 350W motors, this battery delivers the appropriate power required for a smooth, efficient ride while providing a long lifespan of up to 3 years.

Key Features:

• Motor Compatibility: Works seamlessly with 250W and 350W e-bike motors

• Battery Type: Lithium-Ion with integrated BMS for overcharge, low discharge, and thermal protection

• Lightweight: Lighter than conventional lead-acid batteries for improved efficiency and handling

• Durability: Provides up to 3 years of service life under proper care

• Charge Cycles: Approximately 1000–1200 full charge cycles

Battery Performance:

• On 250W E-Cycle Motor:

  • Full Charge Range: Approx. 45 km (Tested with a 55 kg rider)

• On 350W E-Cycle Motor:

  • Full Charge Range: Approx. 45 km (Tested with a 55 kg rider)

Battery Specifications:

• Voltage: 36V

• Capacity: 21Ah (21,000mAh)

• Max Discharge Current: 20A

• Cell Type: DMEGC 2600mAh 3C EV-grade lithium-ion cells

• BMS Specification: 10s20A with heat sink protection

• Charge Cycles: Approx. 1000–1200 full charge cycles

• Wire Specification: 2.5 sqmm wire for both charging and discharging

• Maximum Capacity: 21Ah (21,000mAh)

Charging Specifications:

• Charger Voltage: 42V

• Charger Current: 3A / 5A

• Important Note: Only use a lithium-ion charger. Do not use a lead-acid battery charger.

Dimensions & Weight:

• Battery Dimensions (Standard Model):

  • Length x Width x Height: 21 x 21 x 8 cm

  • Weight: 4.2 kg

• Battery Dimensions (Compact Model):

  • Length x Width x Height: 8 x 8 x 29 cm

  • Weight: Approx. 2.5 kg

Warranty Information:

• Warranty: This battery comes with a 2-year warranty.

• For complete details on the warranty, please refer to our Warranty Policy page.

Package Includes:

• 1 x Lithium-Ion Battery

• 1 x Battery Socket

This Lithium-Ion battery is designed for those who demand high performance, long-lasting power, and superior reliability for their e-bikes and e-cycles. With its lightweight design, robust power output, and enhanced protection features, it ensures a safe and smooth riding experience.
