BMS JIABAIDA (JBD) NMC 13S 48.1V 40A Battery Management System

Description

Key specs & what are known

• It is a 13-series (13S) BMS for NMC (nickel-manganese-cobalt lithium) chemistry. One listing shows “13S NMC 48.1 V nominal / 4.2 V × 13” for charging cell.

• Continuous current rating: 40 A (charge/discharge) in that specific listing.

• Operating temperature: -20 °C to +75 °C

• Path resistance ≤ 10 mΩ in one spec.

• Idle consumption ≤150 µA in one spec.

• It uses a “same port” (common P-/B-) style wiring (charge & discharge on same terminal) as per one listing.

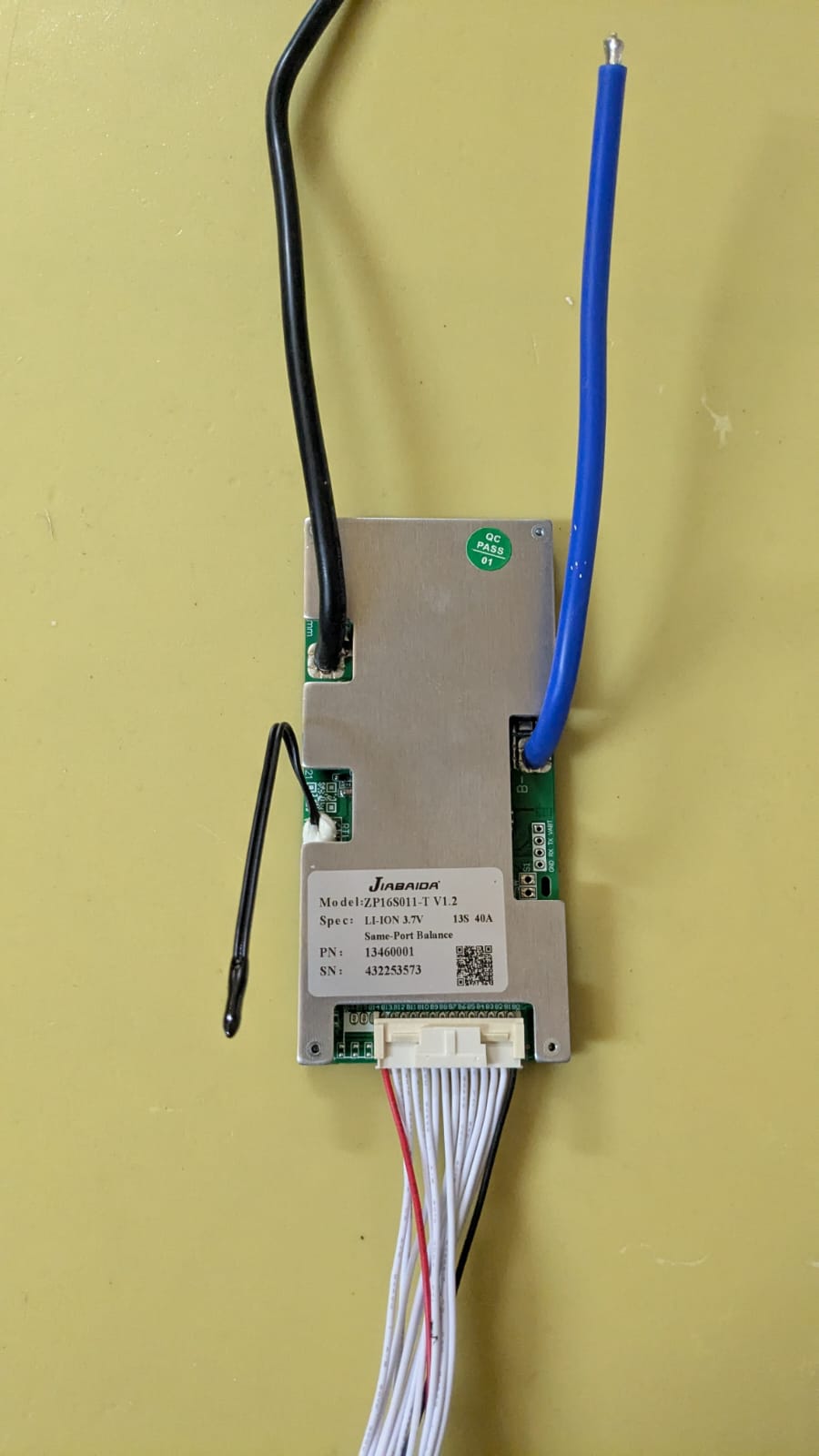

• The model number “ZP16S011-T V1.2” suggests it’s version 1.2 of the hardware.

Also the manufacturer specification sheet (for “13 S 40A 三元系列” – “ternary / NMC series”) confirms the model supports 6-16 S packs, various chemistries including NMC and LFP.

⚠️ Things to check / caution

• Chemistry suitability: It says NMC, so make sure your cells truly are NMC (not LFP) and that the charge / cut-off voltages match your cell spec. Example: one listing notes cell voltage range 2.20-4.30 V.

• Series count match: The listing says 13S (48.1V nominal). If you had a different series (say 16S), you’d need another version. Using wrong series will mis‐set voltage cut-offs and may damage the pack or BMS.

• Current rating vs your load: 40 A continuous is respectable, but for EV use (motor, surges) you should check peak current, surge capacity, wiring, heat issues. If your vehicle draws higher surges you might need a 50–60 A BMS or board with higher MOSFETs.

• Balancing & features: It appears to be a hardware BMS (passive balancing). If you want advanced monitoring (Bluetooth, CAN, SOC display) you may need a “smart” version of JBD (or add modules). Some users report issues with JBD smart modules.

• Wiring & installation: Ensure the balance lead wiring (13 cell taps), correct port connections, good heavy current leads. Incorrect wiring is a common failure point.

• Thermal management: At 40 A for ~48 V pack, that’s about ~1900 W nominal power; MOSFETs will dissipate heat — ensure mounting is good, ventilation/heat-sink considered.

• Vendor/warranty: Some listings show only 15 days warranty. For an EV build you’d prefer longer support.

• Version verification: Ensure you are getting the correct version (V1.2) and correct spec for 13S NMC. Some confusion exists with similar model numbers for other series (e.g., 16S 40A) in other listings. Eg: a listing for “NMC 16S 40A ZP16S011” exists.

🎯 My recommendation: Is it suitable for EV use?

Yes — if your EV pack is indeed 13S, NMC chemistry, and your current draw is within ~40A continuous (with some margin for surges) then this BMS can be a good fit: cost-effective, known brand (JBD).
However, if:

• Your pack is different series (e.g., 14S/16S)

• The motor or load will draw significantly higher current (say >40A continuous or high surge)

• You want smart features (Bluetooth, CAN) for monitoring

• You expect heavy duty/long lifespan with higher reliability and maybe warranty

Then you might consider a higher spec or smart version (for example 13S or 16S 50A/60A or smart BMS variant) instead.
