60Volt 30Ah Electric Scooter Bike Lithium Battery Pack with Smart BMS System

Description

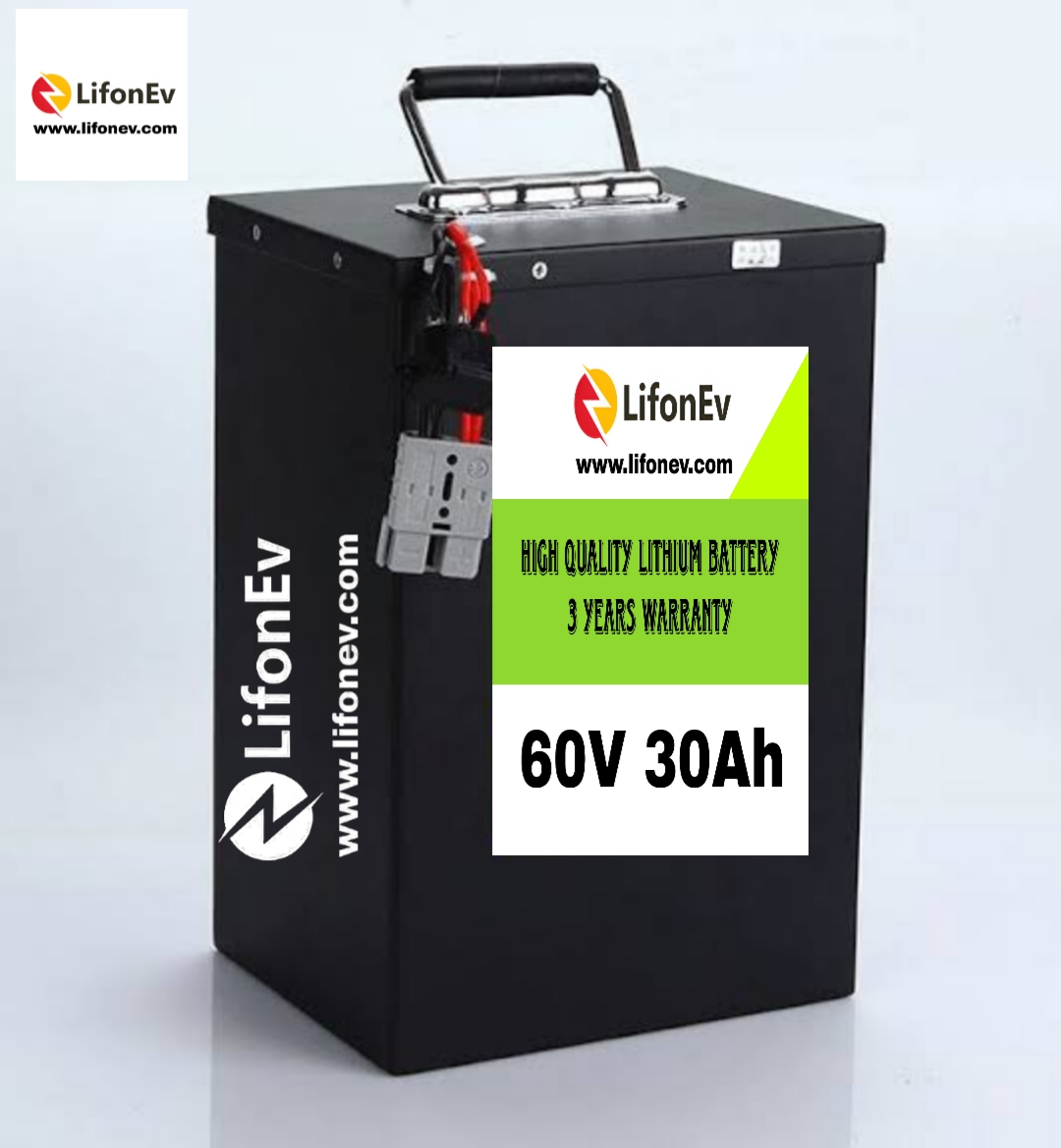

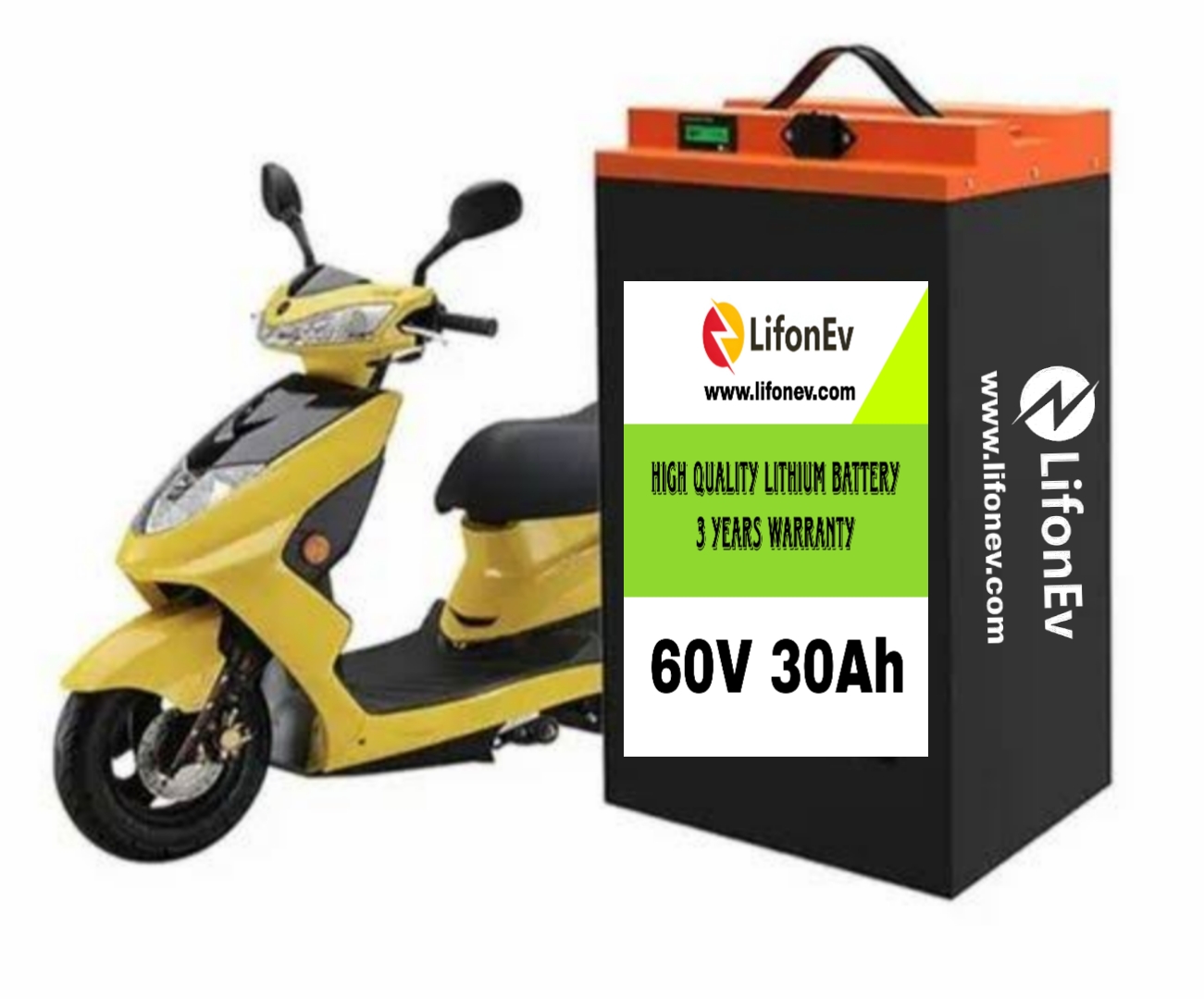

60V Lithium-Ion Battery (NMC) for E-Bikes and E-Scooters

Upgrade your electric vehicle with our high-performance 60V Lithium-Ion (NMC) Battery, engineered for maximum power and efficiency. Ideal for E-Bikes, E-Scooters, and compatible with both Hub Motors and DC Gear Motors, this battery offers superior performance compared to traditional lead-acid batteries.

Key Features:

Higher Power & Mileage: Provides up to 1.5 times more mileage than a standard lead-acid battery.

Longer Lifespan: Enjoy up to 3 years of service life, outlasting lead-acid batteries which typically last only 1 year.

Lightweight Design: Significantly lighter than traditional lead-acid batteries, reducing overall weight for better performance.

Premium BMS & Safety Features: Comes with a high-quality Battery Management System (BMS) for enhanced safety, including overcharge protection and low discharge protection.

Compatibility: Perfect for replacing the lead-acid battery in any 60V-rated electric bike or scooter.

High-Quality Manufacturing: Each battery is rigorously tested, including IR testing, spot welding, and balancing, ensuring reliability and performance.

Battery Specifications:

Dimensions:

Length x Width x Height = 19 x 19 x 23 cm ± 1 cm

Weight: 6 kg

Battery SOC Meter:

Displays:

Battery Capacity

Voltage

LED segment bar indicating battery capacity

Battery Wires:

Anderson Socket/SB50: For both charge and discharge.

Extra 3-pin computer socket: For charging only.

Battery Cells:

Cell Type: DMEGC 2600 mAh 3C EV Grade

Total Cells: 16 series x 12 parallel =192 cells

Charge Cycles (Full Capacity): Approximately 1200 cycles

BMS (Battery Management System):

Type: 13s40A Branded BMS with heat sink protection

Thermal Sensor Protection: Yes

Battery Electrical Specifications:

Maximum Capacity: 26Ah or 26,000mAh

Voltage: 60V nominal, full charge at67.2V, low discharge at 58V

Maximum Power for Motor: 1500W

Maximum Discharge Current: 40A

Maximum Charging Current: 20A

Backup & Efficiency:

Backup: This battery offers 1.5x the mileage of a normal lead-acid battery.

Charging Specifications:

Charger Voltage: 70V

Charger Current: 3 to 6 amps
